Boxes

General

• All submissions must include a work history to be worth credit.
• Make sure to name files exactly as specified, including capitalization.
• Make sure your program accepts input in exactly the order and format specified. Do not ask for extra input or change the order of inputs. (If you want to make an expanded version of a program and get feedback on it, email it to me or show me in person.)
• Output the requested information in the specified order. Slight variations in output wording/formatting are usually fine, as long as formatting isn't part of the assignment. If you cannot get the right final output, print out some evidence of the work your program did to demonstrate your progress.
• Readability and maintainability of your code counts. Poor formatting, confusing variable names, unnecessarily complex code, etc. can result in deductions from your score.

Objective

Upon completion of this assignment, the student will be able to write functions and use unit tests to verify their functionality.

Background

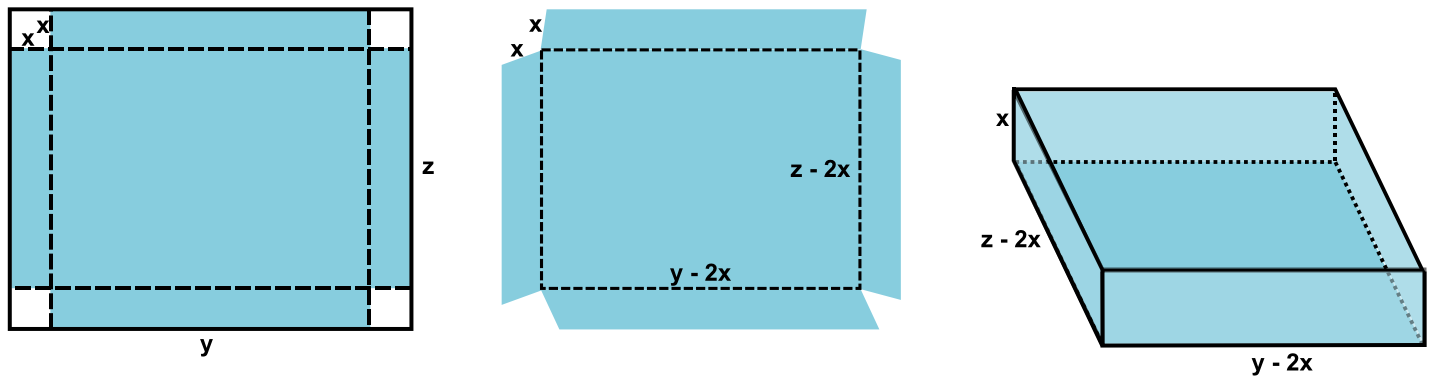

You will be functions to help calculate information about the boxes that can be made from a sheet of cardboard. Say we have a sheet of cardboard that has a width of $y$ and a length of $z$. We can make cuts of size $x$ as shown below in the leftmost picture, then fold the sides up to make a box with the dimensions $y - 2x$ by $z - 2x$ by $x$.

Assignment Instructions

Use the UnitTestProject template folder.

Then open tests.cpp and replace it with the starter code from this copy of tests.cpp.

If a given TEST_CASE fails to compile, or crashes while running, comment it back out before submission so I can see the rest of the tests run. Leave in your code that you tried to write for the test, you can still get partial credit for untested code. If a TEST_CASE does compile and run, but fails, leave it uncommented. A failed test is better than a commented out one - it represents working code that clearly identifies a problem that could be worked on more.

In terms of scoring for each function:

Passing Test > Failing Test > Commented-Out Test > Does not Compile OR Missing

See below for tips on specific functions.

Submission

Submit file: assign6.zip

I should be able to compile and run your program by doing:

g++ -std=c++17 tests.cpp  -o program.exe
.\program.exe       (./program.exe on a mac)

Functions Guide

The following functions are what you need to actually implement. There is one or more unit test for each function.

Each function must be preceded by a doxygen comment with a brief description of the function overall, and descriptions of its parameters and return value.

It is strongly recommended you attack them by working on one unit test at a time. Uncomment the next unit test in the file and build a new function (or modify existing functions) until you pass the test.

int getArea(int width, int length)

For a given width and length, return area of the corresponding rectangle.

int getVolume(int width, int length, int height)

For a given width, length and height, return volume of corresponding box. This must use getArea as a helper for full credit.

int leftoverCardboard(int cutoutSize)

For a given size cutout ($x$), return the number of square inches of leftover cardboard (total area cut out at the corners).

For example, leftoverCardboard(3) should return 36.

int getMaxHeight(int width, int length)

For a given width and length, returns the maximum height (whole number) that results in a valid box (all dimensions greater than 0).

int getBestHeight(int width, int length)

For a sheet of cardboard of the given width and length, return the height of the "best" box to make from it. The "best" box is the one that has the maximum possible volume, and if there are multiple with the same volume, the one of those with the greatest height. (It will always have more leftover cardboard, which we can recycle to make more boxes with.)

For example the possible boxes given a 16 x 14 sheet are shown below. The "best" box has a height of 3. It is tied for the most volume with height 2, but results in more leftover cardboard.

Height   Width   Length   Volume   Leftover Amount
1        14      12       168      4
2        12      10       240      16
3        10      8        240      36
4        8       6        192      64
5        6       4        120      100
6        4       2        48       144

Hint: Notice that as the height increases, volume will increase as well until it reaches a point at which it starts decreasing. The last height that does not produce a smaller volume is the best one. In the fable above, height 1 produces a volume of 168; height 2 produces a volume of 240, which is not smaller than the 168 we saw; height 3 produces a volume of 240, which is again not smaller than the value of 240 we saw with height 2; height 4 produces a volume of 192, which is smaller than the 240 we saw at the last step. Therefore, the best height is 3 - there is no need to even consider the other possible heights.

For full credit, you must use your other functions and not duplicate their logic.

Only worry about integer heights. You do not have to worry about length or width being less than 3.

string createBoxStatsString(int w, int l, int h)

Return a string that for a box of the given dimensions, builds a string containing the following information:

Height Width Length Volume LeftoverAmount

The information should be formatted so that it is left justified in columns of width 8, except for the last value (LeftoverAmount), which should just be added without any specific width.

For inputs of 8, 6, 2, this should look like:

2       8       6       96      16

Shown with .'s instead of spaces, that is:

2.......8.......6.......96......16

stringstream outStream;
outStream << left << setw(8) << variable1;
outStream << left << setw(8) << variable2;
...
string result = outStream.str();

void printBoxOptions(int width, int length)

For a sheet of cardboard of the given width and length, print out a table like the one below of the possible boxes. Next to the best box (as defined in getBestHeight), print ***.

For a sheet that is 20 x 15, you should print something like:

Height  Width   Length  Volume  Leftover Amount
1       18      13      234     4
2       16      11      352     16
3       14      9       378     36***
4       12      7       336     64
5       10      5       250     100
6       8       3       144     144
7       6       1       42      196

The columns of output should be cleanly lined up with the headers.

For full credit, you must use your other functions and not duplicate their logic.
